Flex-Lok TCF Hose -Double-ply construction black Teflon fabric hose with a silver heat-resistant fiberglass liner mechanically crimped in a continuous process Features ?Fabric is locked around a coated steel wire by a metal strip formed into a clip ?Metal strip acts as a wearstrip and offers outstanding external abrasion resistance ?Fiberglass liner increases tensile strength for a longer life cycle ?Excellent fatigue resistance & good flex characteristics ?Excellent for reel & drop systems ?Sealed exterior prevents the escape of dangerous fumes ?Ideal for venting many of today’s harsh chemicals ?Available with a non-marking thermoplastic rubber clip cover to protect the helix & the equipment that is attached to the hose, consult sales team to discuss appropriate applications ?Standard Max. Inside Diameter = 18", Custom to 20" ?Negative pressure fan system with ambient air inlet recommended to maximize effectiveness and life of duct, STD. Length (ft) 12, Temp. Range (F)-60 to 600

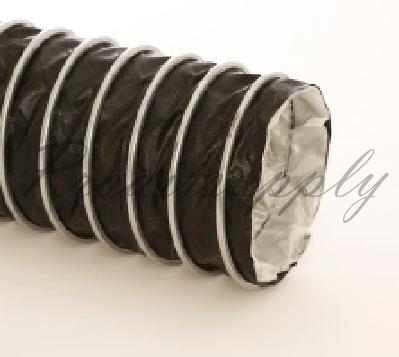

Flex-Lok TCF Hose

Flexaust Flex-Lok TCF Double-ply Teflon® fabric hose

Flexaust Flex-Lok TCF Hose mechanically crimped in a continuous process and a heat resistant fiberglass liner.

Fabric is locked around a coated steel wire by a metal strip formed into a clip.
Fumes are contained by the sealed exterior. Hose is Ideal for venting harsh chemicals.
Size Range 3 to 20 Inches Inside Diameter
Standard Lengths 25 FT
Temperature Rating (F) -60 to 600
Common Uses for Hose

Flexaust TCF Brick Kilns Hose

Flexaust TCF Chemical Fume Extraction Hose
