Quick Connect Rolled Lip Branch Fittings
ProAirSupply offers quick connect branch fittings for industrial dust collection,
ventilation, and material conveying systems. Branch fittings allow a secondary
duct line to connect into a larger main duct while maintaining the same modular
quick connect rolled-lip connection system.
Quick connect branches are available in galvanized steel or stainless
steel with multiple main duct and branch diameter combinations.
Looking for a specific quick connect branch?
Enter the main diameter, branch diameter, material, gauge, or part number in the
ProAirSupply search bar to locate available duct fittings.
Quick Connect Branch Sizes & Configurations
|
Specification
|
Available Options
|
|
Main Duct Diameter
|
Multiple sizes within the 3" through 24" quick connect ductwork range
|
|
Branch Diameter
|
Varies by main duct size and fitting configuration
|
|
Material
|
Galvanized Steel or Stainless Steel
|
|
Connection Type
|
Quick Connect Rolled Lip
|
|
End Configuration
|
Rolled Lip Connections
|
Branch Fittings for Dust Collection Ductwork
Branch fittings are used to connect secondary duct runs, machines, pickup
points, and equipment connections into the main dust collection duct line.
Different combinations of main diameter and branch diameter allow the duct
system to be sized for the airflow and layout requirements of individual
equipment connections.
Galvanized Quick Connect Branches
Galvanized steel rolled-lip branch fittings are available for compatible
galvanized quick connect duct systems. Match the main diameter, branch diameter,
gauge, and connection style to the adjoining ductwork.
Stainless Steel Quick Connect Branches
Stainless steel quick connect branches are available for systems requiring
stainless construction. These fittings connect to compatible stainless rolled-lip
duct pipe and fittings using quick connect clamps.

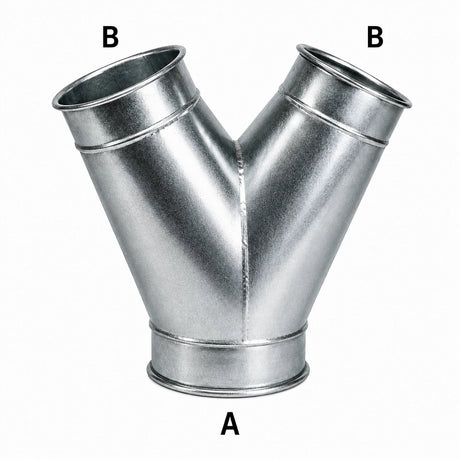

Main & Branch Duct Diameters
Quick connect branch fittings are identified by both the
main duct diameter and branch diameter. These dimensions may
be equal or different depending on the fitting and system layout.
Always verify both diameters before ordering a branch fitting.
Rolled Lip Quick Clamp Connections
Quick connect branches use formed rolled-lip ends designed to join compatible
duct pipe and fittings with quick connect clamps. This creates a modular duct
system that can be assembled, serviced, and modified without traditional
bolted flange connections.
Building a Complete Quick Connect Duct System
Branch fittings can be combined with straight duct pipe, elbows, reducers,
tees, laterals, double laterals, Y-branches, blast gates, adapters, and other
rolled-lip components to build a complete industrial dust collection or
material conveying system.
Choosing the Correct Quick Connect Branch
When selecting a branch fitting, verify the
main duct diameter, branch diameter, material, material gauge,
and rolled-lip connection type.
Not every combination of main diameter, branch diameter, material, and gauge
is available, so confirm the complete fitting configuration before ordering.
Don't see the quick connect branch you need?
Search ProAirSupply by main diameter, branch diameter, material, gauge, or part
number to locate additional rolled-lip duct fittings.
Shop Quick Connect Branch Fittings
Browse quick connect rolled-lip branch fittings in galvanized steel or
stainless steel for industrial dust collection and material conveying systems.
Select the main diameter, branch diameter, material, and gauge required to
match your quick connect ductwork.
