Quick Connect Rolled Lip Elbows
ProAirSupply offers quick connect elbows for industrial dust collection,
ventilation, and material conveying systems. Rolled-lip elbows are available
from 3 inch through 24 inch diameter in
galvanized steel or stainless steel.
Available elbow angles include 30°, 45°, 60°, and 90°,
with multiple centerline radius options for matching system layout and
conveying requirements.
Each elbow uses quick connect rolled-lip ends designed
for use with compatible clamps, allowing elbows to connect directly to
straight duct pipe and other rolled-lip fittings.
Looking for a specific quick connect elbow?
Enter the diameter, angle, material, radius, gauge, or part number in the
ProAirSupply search bar to locate available ductwork.
Quick Connect Elbow Sizes & Configurations
|
Specification
|
Available Options
|
|
Duct Diameter
|
3" through 24"
|
|
Material
|
Galvanized Steel or Stainless Steel
|
|
Elbow Angles
|
30°, 45°, 60° and 90°
|
|
Centerline Radius
|
1D, 1.5D and 2.5D depending on configuration
|
|
Standard Radius
|
1.5D
|
|
Connection Type
|
Quick Connect Rolled Lip
|
|
End Configuration
|
Rolled Lip x Rolled Lip
|

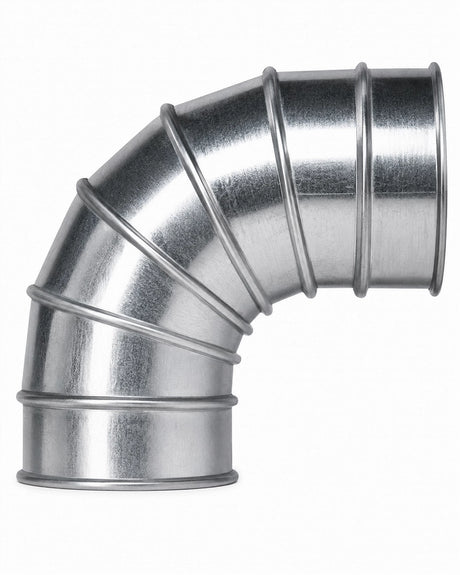

30°, 45°, 60° & 90° Quick Connect Elbows
Quick connect duct elbows are available in multiple angles to route ductwork
around equipment, structural components, and other obstacles within an
industrial dust collection system.
-
30° Elbows – For gradual directional changes
-
45° Elbows – Common angled transition
-
60° Elbows – Intermediate directional change
-
90° Elbows – For full right-angle changes in duct direction
1.5D Standard Radius Elbows
1.5D centerline radius elbows are the standard configuration
for this quick connect ductwork line and should generally be considered first
when selecting an elbow.
Additional centerline radii, including 1D and 2.5D, are available for selected
sizes and configurations. Availability of 1D elbows varies by product.
Long Radius 2.5D Elbows
2.5D elbows provide a longer, more gradual directional transition than
standard-radius elbows. These configurations can be useful where system layout
or material conveying requirements call for a broader radius.

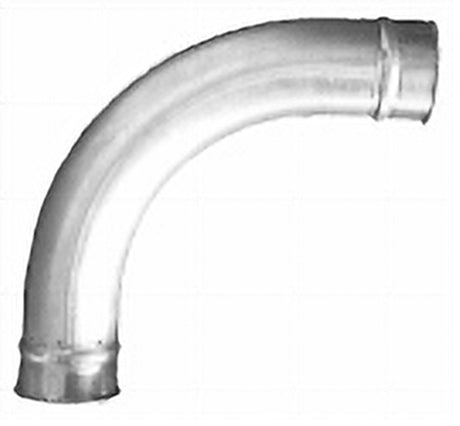

Galvanized Quick Connect Elbows
Galvanized steel rolled-lip elbows are available in multiple diameters,
angles, gauges, and radius configurations for industrial dust collection
and conveying systems.
Stainless Steel Quick Connect Elbows
Stainless steel quick connect elbows are available for systems requiring
stainless construction. Match the elbow diameter, angle, radius, and gauge
to the adjoining stainless steel ductwork and fittings.
Rolled Lip Quick Clamp Connections
Quick connect elbows use formed rolled-lip ends that join to compatible
duct pipe and fittings with quick connect clamps. This modular connection
method allows ductwork to be assembled, serviced, or modified without
traditional bolted flange connections.
Choosing the Correct Quick Connect Elbow
When selecting an elbow, verify the
duct diameter, material, gauge, elbow angle, centerline radius,
and rolled-lip connection type.
Not every combination of diameter, material, gauge, angle, and radius is
available, so confirm the complete elbow configuration before ordering.
Don't see the quick connect elbow you need?
Search ProAirSupply by diameter, angle, material, radius, gauge, or part
number to locate additional rolled-lip elbows and duct fittings.
Shop Quick Connect Elbows
Browse quick connect rolled-lip elbows from 3 through 24 inches in galvanized
steel or stainless steel. Choose from 30°, 45°, 60°, and 90° elbows with
available 1D, 1.5D, and 2.5D centerline radii for industrial dust collection
and material conveying systems.
