Replacement Aercology Centrifugal Mist Collectors
ProAirSupply offers complete replacement mist collector units for
Aercology centrifugal mist collection systems used on CNC
machines, lathes, machining centers, automatic screw machines, and other
industrial equipment that generates coolant or oil mist.
These replacement mist collectors are complete machines designed for the
removal of airborne coolant mist, smoke, fumes, gas, and vapor
from industrial machining environments.
Looking for a replacement for an Aercology mist collector?
Enter the Aercology model or part number in the ProAirSupply search bar to
locate available replacement mist collection equipment.

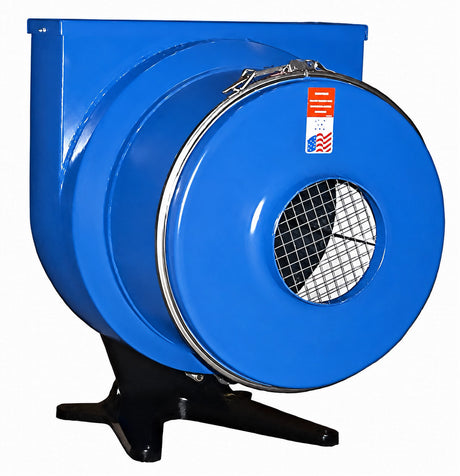

Centrifugal Mist Collection Units
Centrifugal mist collectors use centrifugal force to separate liquid mist
from the incoming air stream. Mist-laden air enters through a flexible hose
and contacts the centrifugal fan blades through a process of impaction.
Small particles are retained until they grow to droplet size. The droplets
are then thrown toward the inner wall of the collector by centrifugal force,
where the liquid drains into a collection chamber. Cleaned air is returned
to the surrounding environment.
Four-Stage Filtration
The centrifugal mist collection units shown use
four stages of filtration for removal of coolant mist,
smoke, gas, and vapor.
The units are manufactured from 16-gauge spun steel with a
powder-coated finish and are designed for compact installation with direct
mounting capability.
Quiet & Compact Mist Collector Design
The centrifugal units are designed for compact machine-tool installation
and operate at approximately 70 to 76 dBA according to the
supplied product information.
Their small footprint and direct-mount capability make them suitable for
installation directly on or near compatible machining equipment.
Replacement Mist Collectors for CNC Machines
Aercology-style mist collectors are used in a variety of machining and
manufacturing applications, including:
- CNC machining centers
- Horizontal machining centers
- Vertical machining centers
- CNC lathes
- Automatic screw machines
- Ink mist applications
- Lubrication and venting systems
- Food processing equipment
Mist Collection Efficiency
The supplied Aercology information states that the mist collection units
are typically rated at approximately 98% efficiency.
Where smoke remains a concern, an optional HEPA final filtration stage may
be used on compatible systems. The source material identifies HEPA filtration
at 99.97% efficiency at 0.3 microns.
Vertical Media Mist Collector Replacement Units
In addition to centrifugal mist collectors, the Aercology product information
also identifies vertical media filtration units for removing
coolant, dust, smoke, fumes, gas, and vapor.
Vertical media units are shown in airflow capacities ranging from approximately
500 CFM through 18,000 CFM and use three stages of filtration
with an optional fourth stage.
Industrial Mist Collection Equipment
Mist collectors help remove airborne coolant and oil mist generated during
machining operations, helping reduce contamination around machinery and
work areas.
Units can be installed on the floor, suspended from the ceiling, or mounted
directly to compatible machinery depending on the collector configuration
and installation requirements.
Choosing the Correct Replacement Aercology Mist Collector
When replacing an Aercology mist collector, verify the
original model, required airflow, machine type, contaminant being
collected, mounting arrangement, voltage, and filtration requirements.
Don't see the replacement mist collector you need?
Enter the original Aercology model or part number in the ProAirSupply search
bar or contact us with the existing unit information so the correct replacement
mist collector can be identified.
Shop Replacement Aercology Centrifugal Mist Collectors
Browse complete replacement Aercology centrifugal mist collector units for
CNC machines, lathes, machining centers, automatic screw machines, and other
industrial applications requiring coolant mist, oil mist, smoke, fume, gas,
or vapor collection.
