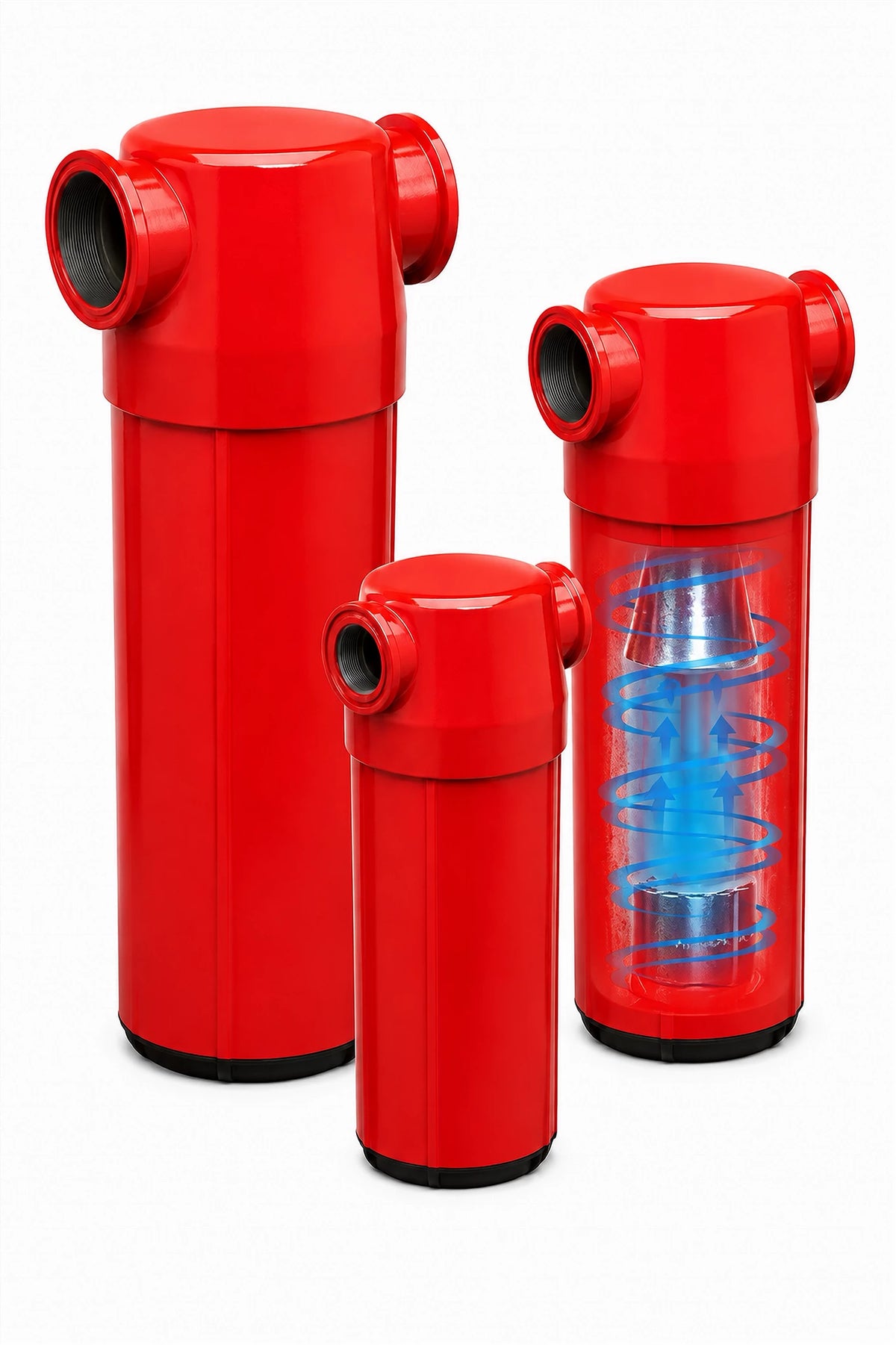

Keltec KWS14-NPT Compressed Air Water Separator Housing
The Keltec KWS14-NPT water separator housing is rated for 14 SCFM at 100 PSIG and features a 1/4 Inch NPT connection. It is designed for industrial compressed-air systems that require removal of bulk liquid water before downstream filters, dryers, pneumatic tools, or production equipment.
This product is a compressed-air water separator housing, not a coalescing filter element.
KWS14 Water Separator Specifications
- Manufacturer: Keltec
- Part Number: KWS14-NPT
- Model: KWS14
- Connection Size: 1/4 Inch NPT
- Rated Flow: 14 SCFM
- Metric Flow Rate: 25 m³/h
- Dimension A: 4.06 Inches
- Dimension B: 10.14 Inches
- Dimension C: 9.29 Inches
- Dimension D: 6.30 Inches
Water Separator Flow Correction Factors
The listed flow rate is based on a correction factor of 1.00 at 100 PSIG. To estimate maximum flow at another operating pressure, multiply the model flow rate by the corresponding correction factor below.
| Operating Pressure (PSIG) | Operating Pressure (barg) | Flow Correction Factor |
|---|---|---|
| 15 | 1 | 0.50 |
| 44 | 3 | 0.71 |
| 73 | 5 | 0.87 |
| 100 | 7 | 1.00 |
| 131 | 9 | 1.12 |
| 160 | 11 | 1.22 |
| 189 | 13 | 1.32 |
| 218 | 15 | 1.44 |
| 247 | 16 | 1.57 |
Contact Pro Air Supply at 1-866-973-7003 for current pricing, availability, installation assistance, and help selecting the correct Keltec water separator housing for your compressed-air system.
