CP287542B-16Z 2-1/2 Inch Pipe Size (2-7/8 OD) Instalok Compression Coupling

2-1/2 Inch Pipe Size (2-7/8 OD) Instalok Compression Coupling

Vacuum Piping Couplings - Instalok Compression Couplings

Choose from the Following Options for CP287542B-16Z

Material Options:
G90 Galvanized Steel

Configuration Options:
Available in 4 Inch, 6 Inch, and 8 Inch Lengths

Gasket Options:
Standard Black Nitrile, White Nitrile, and Viton

Compression Coupling Part Numbers associated with 2-1/2 Inch Pipe Size (2-7/8 OD) Instalok Compression Coupling include:
CP287542B-16Z 4 Inch Black Gasket
CP28742W-16Z 4 Inch White Gasket
CP28762B-16Z 6 Inch Black Gasket
CP28762W-16Z 6 Inch White Gasket
CP28782B-16Z 8 Inch Black Gasket
CP28782W-16Z 8 Inch White Gasket

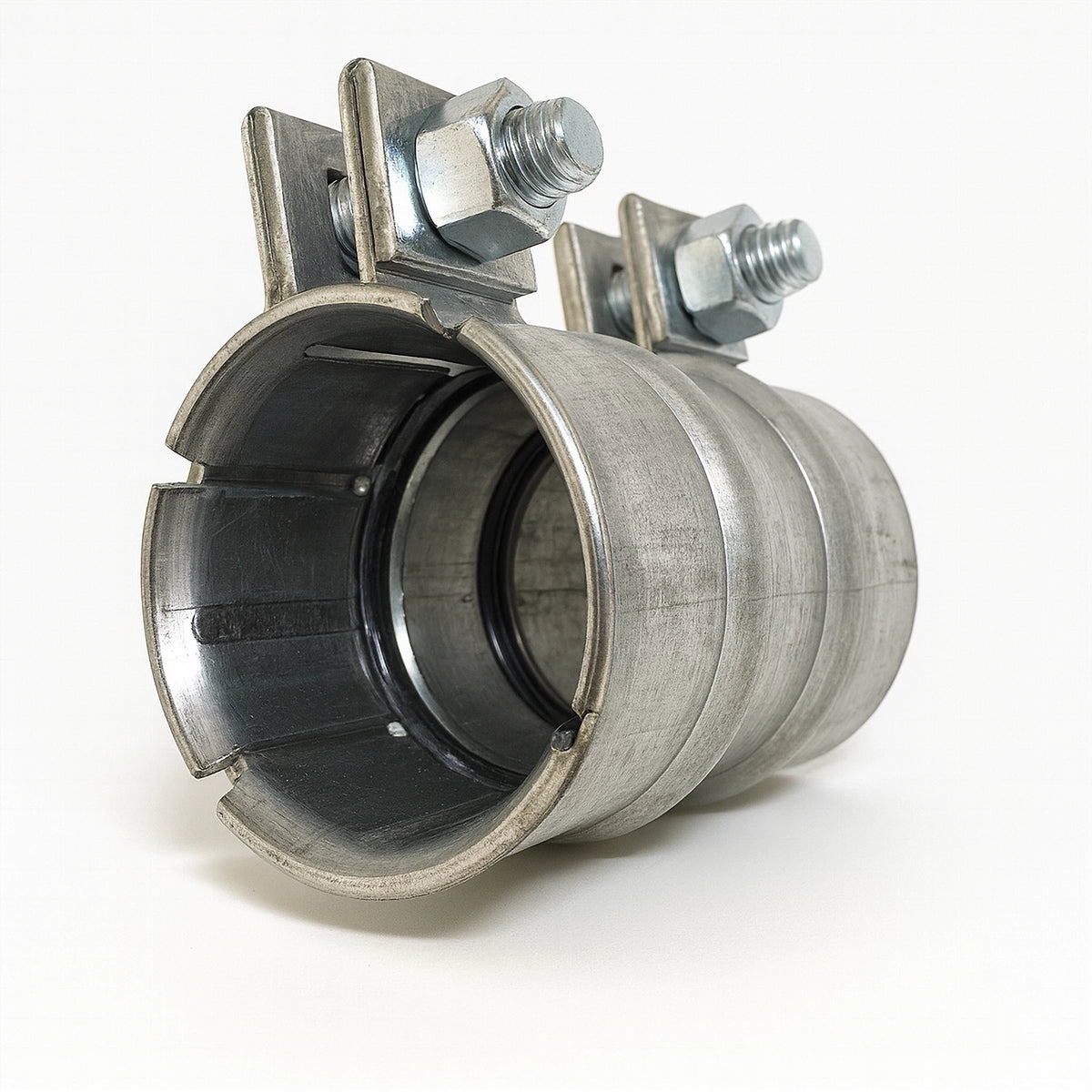

The CP287542B-16Z Instalok Compression Coupling is designed for secure, leak-resistant connections in industrial dust collection, pneumatic conveying, and vacuum piping systems. Manufactured from durable 16 gauge G90 galvanized steel, this 2-1/2 Inch pipe size (2-7/8 OD) coupling features a 4.000 inch overall length and dual black neoprene O-ring gaskets for dependable sealing performance.

The Instalok style design allows for fast installation and easy system maintenance while providing reliable sealing and airflow performance in demanding industrial applications including material handling, woodworking dust collection, powder processing, industrial ventilation, and dust extraction systems.
