Flexaust | SKU: CW-325-2-25

Flexaust CW-325 Acrylic-Coated Fabric Duct Hose

$252.50

Shipping calculated at checkout.

Product Specifications

Inside Diameter	2.0"
Length	25 ft
Color	Black

Specifications

Inside diameter, hose length, temperature range, working pressure, and vacuum performance are shown above when available.

Materials

Hose construction may include reinforced PVC, urethane, thermoplastic rubber, wire helix reinforcement, static-dissipating materials, and other compounds depending on the hose series.

Applications

Dust collection, HVAC ventilation, industrial vacuum, material handling, chemical transfer, food processing, and other industrial applications.

Features & Construction

Features may include wire-supported construction, abrasion resistance, static dissipation, FDA-compliant materials, flame resistance, and other performance characteristics depending on the hose.

Need help identifying the correct replacement? Contact us with your OEM part number or equipment model.

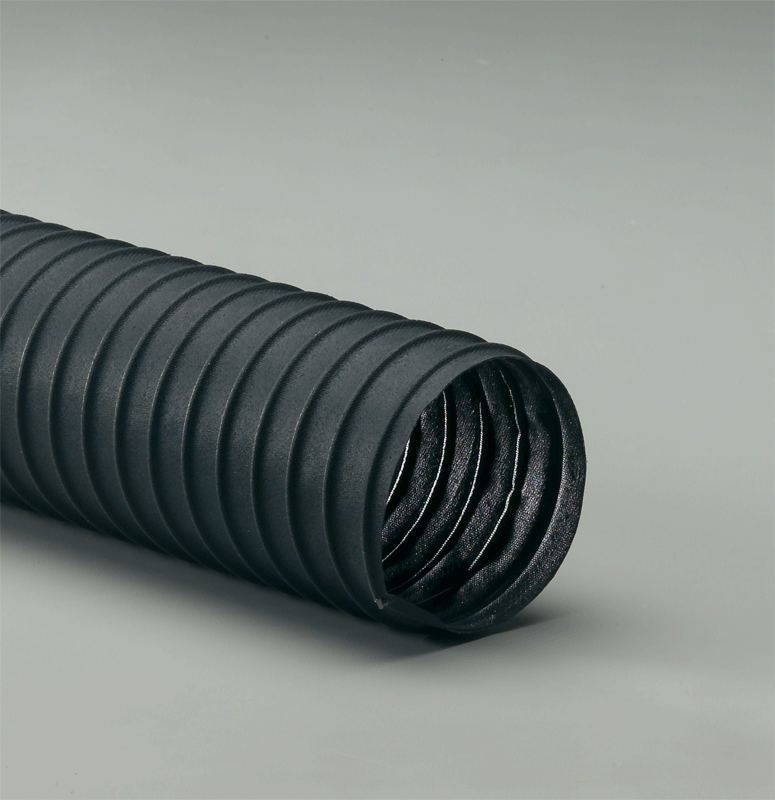

Flexaust CW-325 Acrylic-Coated Polyester Fabric Ducting Hose (Spring Steel Wire Helix)

Product Overview

Flexaust CW-325 is a lightweight, flexible acrylic-coated polyester fabric hose reinforced with a spring steel wire helix for air and fume handling. It is commonly used in overhead vehicle exhaust and ventilation systems where flame retardancy, easy routing, and reliable airflow performance are required., making it a preferred choice for high-temperature industrial exhaust routing.

Key Features

Single-ply acrylic-coated polyester fabric construction

Spring steel wire helix reinforcement

Ideal for air and fume handling applications

Excellent choice for overhead vehicle exhaust systems

Lightweight and flexible

UL 94V-0 flame retardant listing

Wearstrip option available (CW-325-W) for added external protection

Size, Length, Color & Temperature

Size range: 2" to 10" ID (custom to 16")

Standard length: 25 ft

Standard color: black

Temperature range: -20°F to 325°F
