HP Products | SKU: 16LAT4003A

16LAT4003 30 Degree, 45 Degree, and 60 Degree Tube Laterals

$72.51

Shipping calculated at checkout.

Title

Aluminum Carbon Steel Stainless

Angle

30 Degree 45 Degree

Gauge

16 Gauge 14 Gauge 11 Gauge

Product Specifications

Outside Diameter	4 OD
Material	Aluminum
Wall Thickness	16 Gauge

Specifications

Technical dimensions, material, wall thickness, thread type, and shipping information are shown above when available.

Materials

Available materials may include galvanized steel, aluminum, stainless steel, and carbon steel depending on product type.

Applications

Industrial vacuum piping, dust collection, pneumatic conveying, central vacuum systems, and material-handling applications.

Compatibility

Designed for use with compatible industrial vacuum tubing, fittings, hoses, and piping systems. Verify outside diameter, wall thickness, and connection type before ordering.

Need help identifying the correct replacement? Contact us with your OEM part number or equipment model.

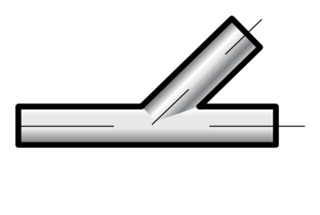

4 OD 30, 45, or 60 Degree Tube Laterals

Thin Wall Vacuum Fittings - 30 Degree, 45 Degree, and 60 Degree Tube Laterals

Choose from a Wide Range of Product Options for 16LAT4003

Material Options:
Aluminum, Carbon Steel, Stainless Steel, or Galvanized by request

End Configuration Options:
Straight Plain Ends

Gauge Options:
16 Gauge, 14 Gauge,11 Gauge

16LAT4003 30, 45, or 60 Degree Tube Laterals are designed to direct airflow through an angled branch connection into a main run to provide smooth air and material flow transitions in industrial dust collection, vacuum piping, and pneumatic conveying systems. Standard angled branches come in 30, 45, and 60 degree configurations and help reduce turbulence, pressure loss, and wear compared to traditional 90 degree branch fittings.
